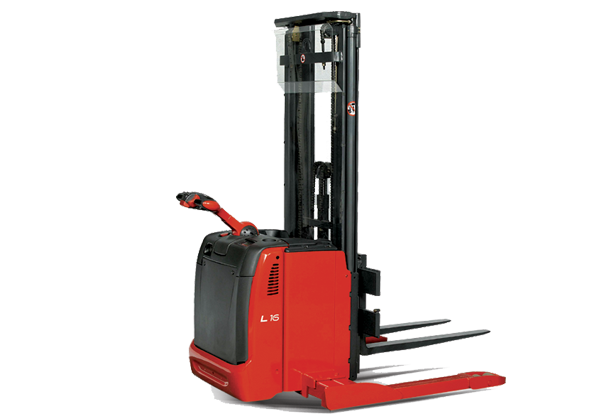

Pallet Stackers L14AS-L16AS
Straddle Electric Pallet Stacker 1.4-1.6t
Characteristics
Three-way braking system: automatic braking by LBC on releasing travel control switch; Electromechanical braking when tiller is moved fully up; Electronic braking by reversing travel control switch.Emergency stop button interrupts all electric circuits and actuates electromechanical brake.
L14AS | L16AS | ||
---|---|---|---|
Load capacity | kg | 1400 | 1600 |
Load center | mm | 600 | 600 |
Service weight | kg | 1471 | 1471 |
Lift | mm | 2924 | 2844 |
Turning radius | mm | 1669 | 1669 |
Travel speed. with/without load | km/h | 6.0/6.0 | 6.0/6.0 |
Features
